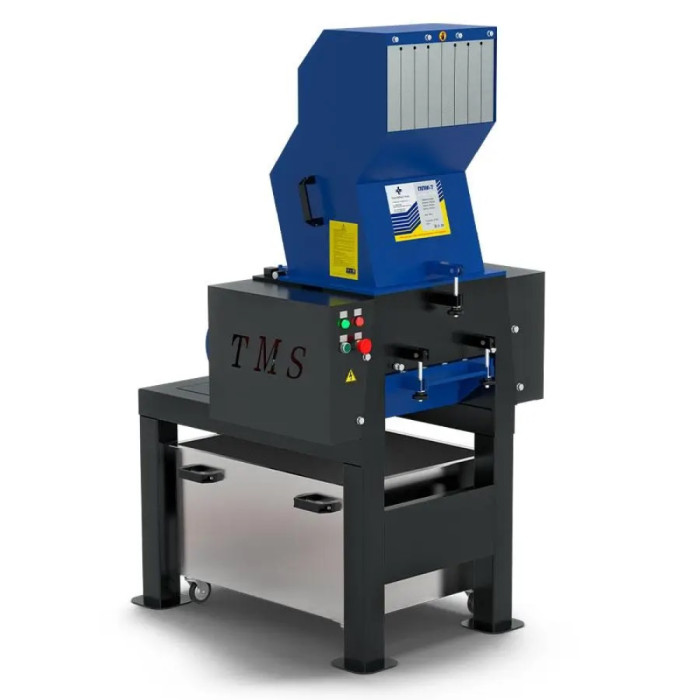

Meat and Bone Grinder PPM-7

Description Meat and Bone Grinder PPM-7

The PPM-7 is a high-performance machine designed for the preliminary grinding of large bones and animal heads. It is widely used in meat processing plants, feed and fertilizer production, and agricultural enterprises. Its robust design and performance meet the demands of modern technological lines.

How It Works

Raw material is fed into the working chamber through a 400 × 300 mm loading opening, where it passes between rotating gear wheels that effectively grind the material. The processed material can then be transported by a screw conveyor with a 2.2 kW / 1500 rpm motor to the next processing stage, such as the PM-18 grinder or storage.

Applications

PPM-7 enables the preparation of raw material for the production of:

• Bone meal (from clean bones)

• Meat and bone meal (from inedible carcasses, veterinary confiscations, and slaughterhouse waste)

These high-protein, mineral-, and fiber-rich products are used for:

• Animal feed for livestock (cattle, poultry) and pets (dogs, cats)

• Phosphorus-rich fertilizers for agriculture

• Alternative fuel in the energy industry

Key Advantages

✔ Can operate independently or as part of a production line
✔ Efficient grinding of large raw materials
✔ Easy to use and highly reliable
✔ Compact design for easy installation and maintenance

Technical Specifications

• Weight (without screw conveyor): 500 kg

• Grinder motor: 7.5 kW / 1500 rpm

• Screw motor (optional): 2.2 kW / 1500 rpm

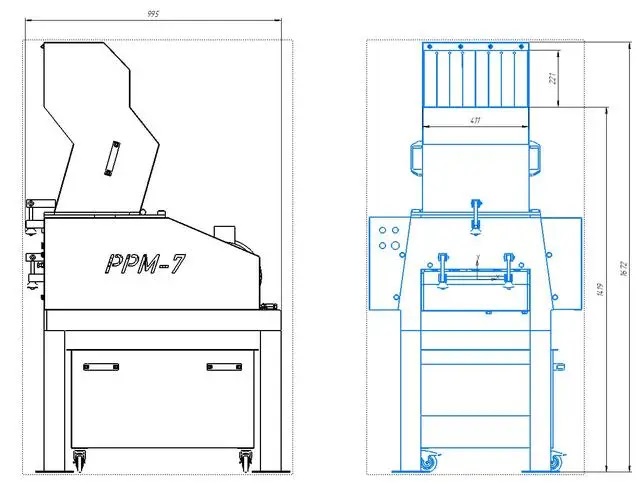

• Loading opening dimensions: 400 × 300 mm

• Number of knives: 14

  • Rotary knives: 12 pcs., size 100 × 90 mm

  • Stationary knives: 2 pcs., size 400 × 90 mm

The PPM-7 is a reliable and versatile solution for companies processing animal-based raw materials. Thanks to its modular design and adaptability, it is suitable for both small-scale facilities and large industrial enterprises.
