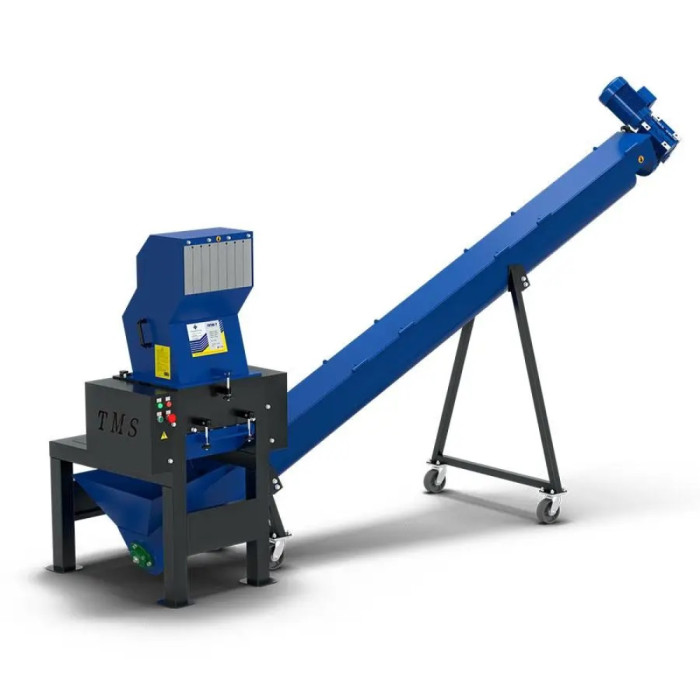

Meat and Bone Crusher PPM-7 with Screw Conveyor

Description Meat and Bone Crusher PPM-7 with Screw Conveyor

The PPM-7 is an industrial meat and bone pre-crusher designed for the coarse grinding of large bones, heads, and other slaughterhouse by-products into fractions of up to 30 mm. This device is widely used in the feed, fertilizer, and processing industries, as well as in agricultural enterprises and waste disposal facilities.

With its robust construction and high-power motor, the PPM-7 handles hard materials with ease, offering a reliable solution for companies involved in animal by-product processing.

The crusher can operate as a standalone unit or as part of a production line – for example, in combination with the PM-18 fine grinder, which receives material through a screw conveyor for further processing.

Applications:

• Production of bone and meat-bone meal

• Feed and fertilizer industries

• Alternative fuel sources

• Farms, processing plants, zoos, and wildlife parks

Available Configurations:

• PPM-7 with loading bin

• PPM-7 with screw feeder

• Optional stainless steel screw version

Key Advantages:

✔ Effective crushing of hard and bulky materials into ≤ 30 mm fraction
✔ Reliable 7.5 kW motor, 1500 RPM – Ensures high performance and durability
✔ Optional 2.2 kW screw feeder (1500 RPM) – For consistent material transport
✔ Rugged design for demanding industrial environments
✔ Can be integrated into automated processing lines

Technical Specifications:

• Output: Depends on raw material type and consistency

• Output fraction: Up to 30 mm

• Main motor: 7.5 kW, 1500 RPM

• Screw motor (optional): 2.2 kW, 1500 RPM

• Weight (without screw): 500 kg

• Hopper dimensions: 400 × 300 mm

The PPM-7 is a proven and efficient solution for companies seeking dependable equipment for the pre-crushing of meat and bone waste, preparing it for further processing into feed, fertilizer, or biomass. Choose the configuration that best suits your production needs – with a bin or a screw conveyor.
