Vibrating Table WS-50

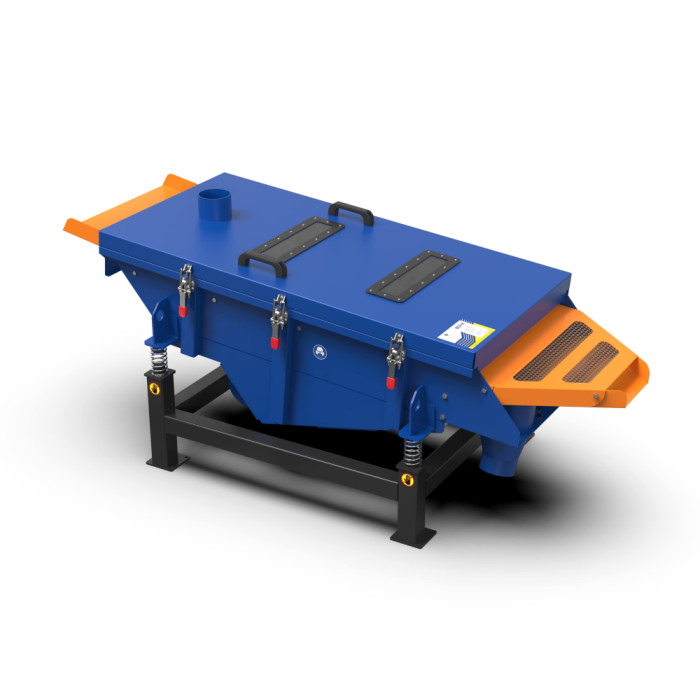

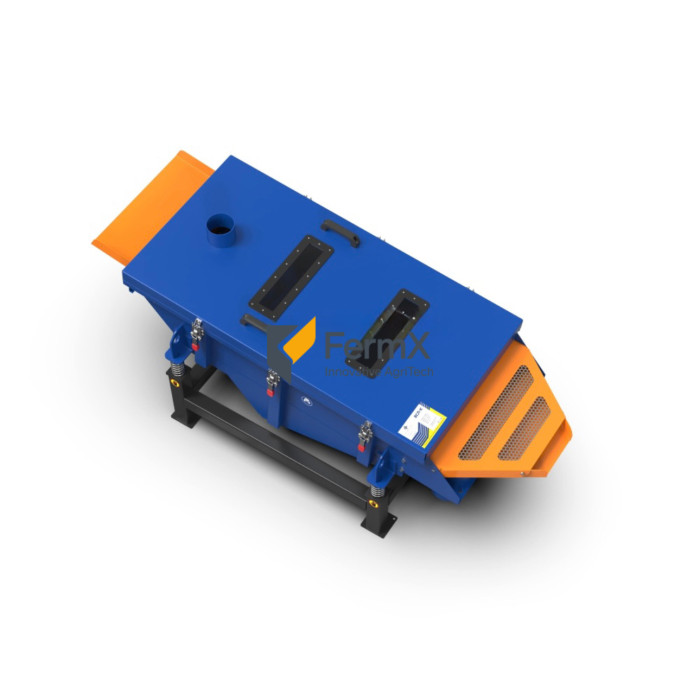

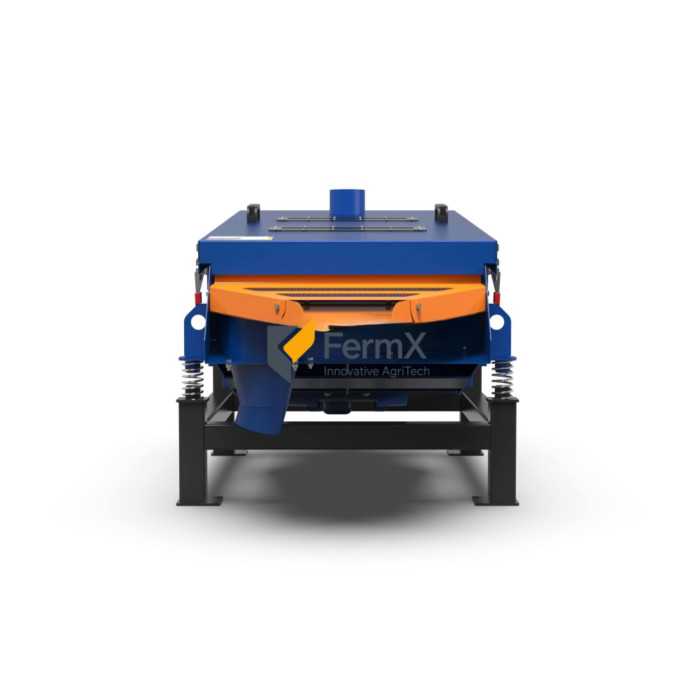

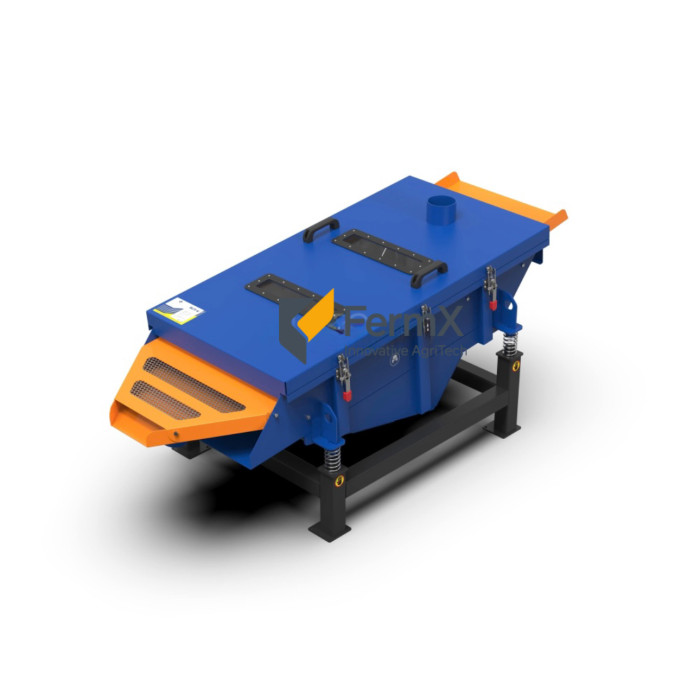

Description Vibrating Table WS-50

The Vibrating Table WS-50 is a modern device designed for calibrating and sieving finished granules after they exit the granulator. Its main advantage lies in its ability to effectively clean granules of dust and excess fine particles, enhancing the quality of the final product. The vibrating table is characterized by a simple yet robust construction, ensuring reliability and long service life.

The device features a vibrating system that provides gentle and even sieving of the granules. Depending on the customer’s needs, the equipment can be fitted with sieves of various apertures, allowing the process to be tailored to specific production requirements. Furthermore, the vibrating system ensures natural cooling of the granules, which is critical for maintaining their quality.

The highest degree of cooling can be achieved if the upper opening on the device's housing is not used during operation. Alternatively, this opening can simply be sealed. In such a setup, the extraction system of the device is connected only to the lower opening. With this configuration, the air drawn in by the device will flow through the screening mesh in a controlled manner. This ensures that the granules are continuously cooled throughout their time in the screener.

Advantages of the Vibrating Table WS-50:

• Effective cleaning of granules from dust and excess fine particles.

• Modular design allowing customization to individual needs.

• Easy integration with closed dust extraction systems (e.g., VP-2 system) or other recirculation setups.

• Sieving and cooling in a single process.

• Option to equip with various sieves based on customer requirements.

• Simple operation and maintenance with accessible inspection windows.

The Vibrating Table WS-50 is the ideal solution for companies involved in the production of feed, pellets, and other granular products that require precise cleaning and cooling of the final granules.
