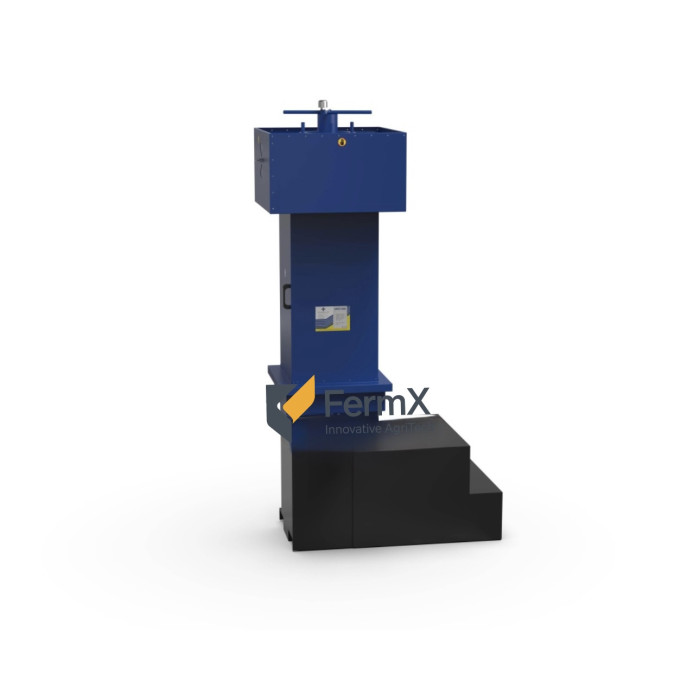

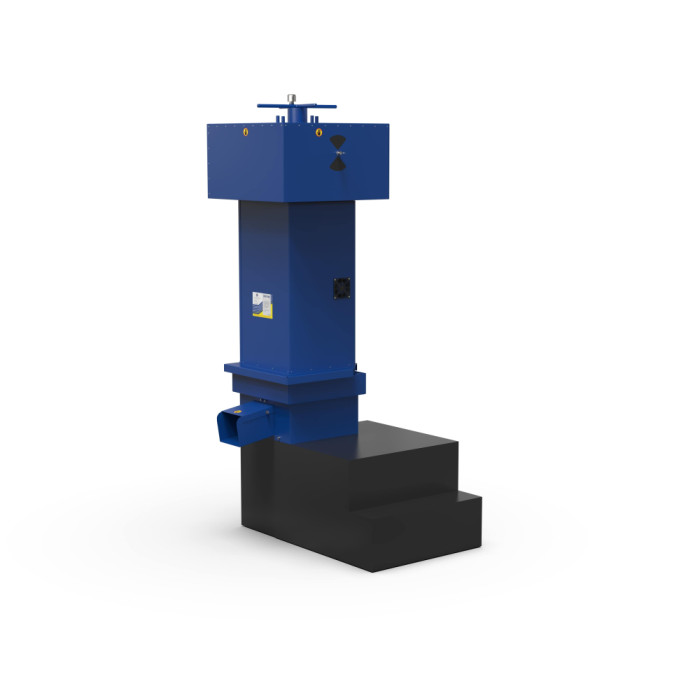

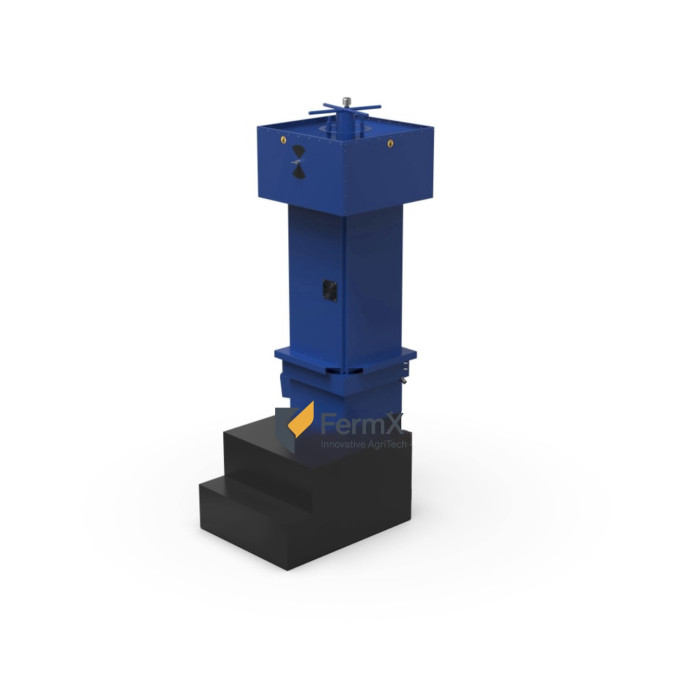

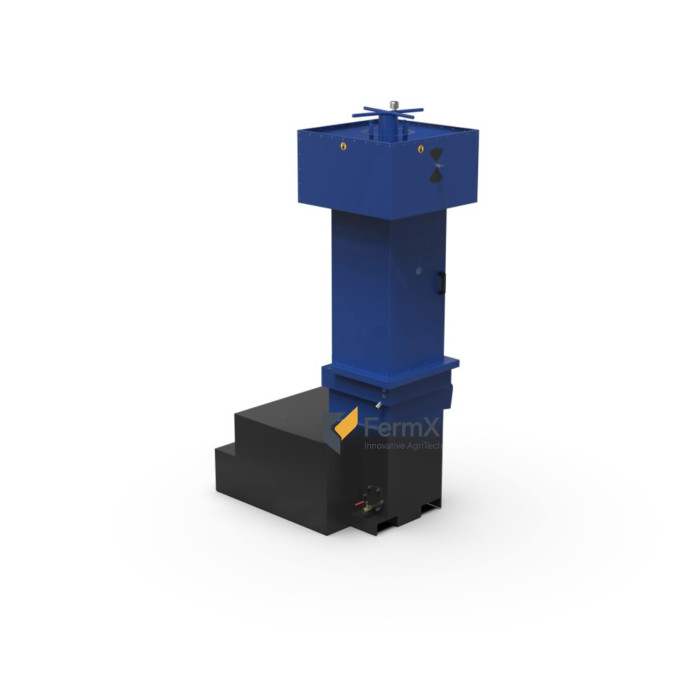

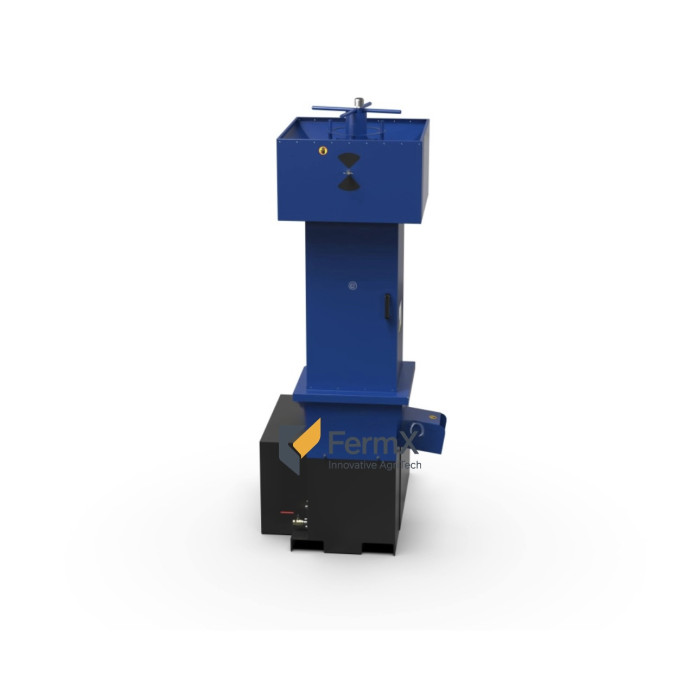

Screw Oil Press MPP-500

Description Screw Oil Press MPP-500

The oil press is designed to extract high-quality oils from oilseeds. Its design, equipped with a pressing screw and a chamber with sieve elements, ensures effective separation of oil from pomace, while maintaining the purity of the final product.

Principle of Operation:

The oil pressing process in this machine is optimized thanks to its well-thought-out design:

• The raw material is fed into the hopper. Then the seeds are directed to the pressing screw using a slide mechanism.

• The screw, mounted on the shaft, crushes the seeds and moves them to the pressing chamber. The design of the screw gradually increases the pressure on the material as it moves through the machine.

• The pressing chamber consists of a screw shaft, a cylinder with holes (sieve elements), a cone, and an adjustable nut. The sieve elements have steel strips with precisely calibrated gaps that allow the oil to flow while retaining solid particles.

• Oil, extracted under high pressure, passes through the slots in the sieve elements and flows into the tank below the press.

• The expeller (residue) is discharged through a hole in the sleeve. The diameter of this hole can be adjusted using a conical mechanism, which allows control of the oil content in the expeller.

• Special adjustment screws allow fine-tuning of the pressing parameters depending on the type of raw material and the desired cake quality.

Main Advantages:

• High efficiency: The press achieves optimum efficiency when processing a variety of seed types, including rapeseed, sunflower, soybean, and flax, with a capacity of up to 500 kg/h.

• Operational flexibility: The adjustable gap in the sleeve allows the process to be adapted to the specific characteristics of the raw material in order to obtain the desired oil and cake quality.

• Cleanliness and quality: The slots in the sieve elements effectively separate the oil from the solid contaminants, ensuring a clean end product.

• Ease of use: The machine is equipped with an intuitive control panel with a built-in ammeter to monitor the motor load and provide precise control of operation.

The efficiency of the machine depends on the type and quality of the raw material (moisture content, level of impurities) and adherence to proper preparation protocols. Thanks to its advanced design, the press is suitable for both small and large plants, offering precision and efficiency in the production of vegetable oil.

The oil press is a reliable and versatile solution for producers looking for high-quality equipment for the production of natural vegetable oils.
