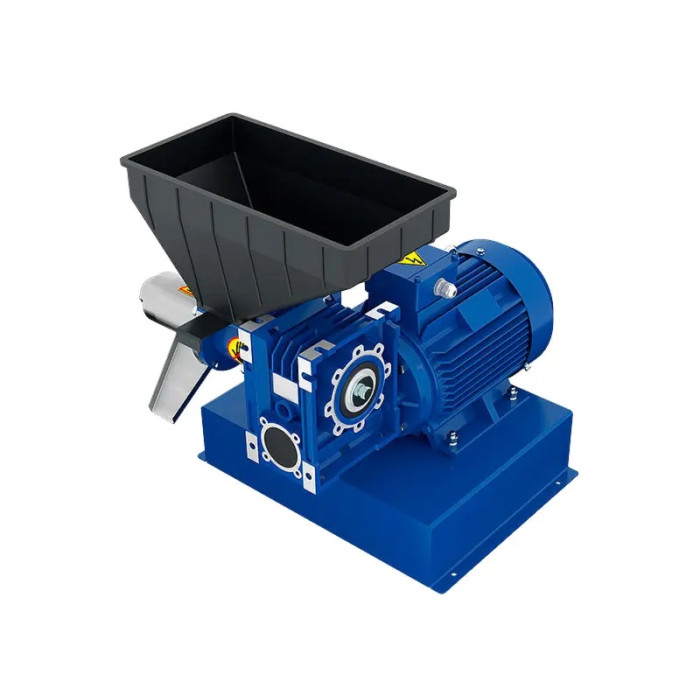

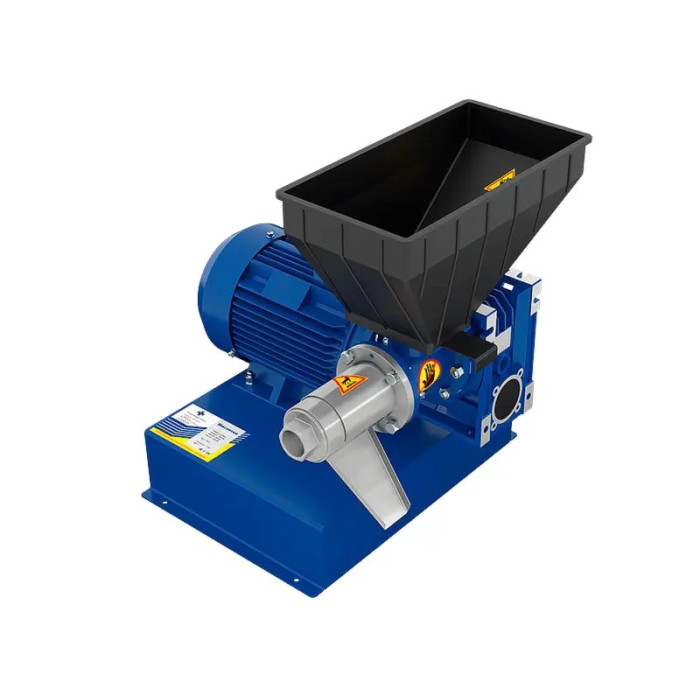

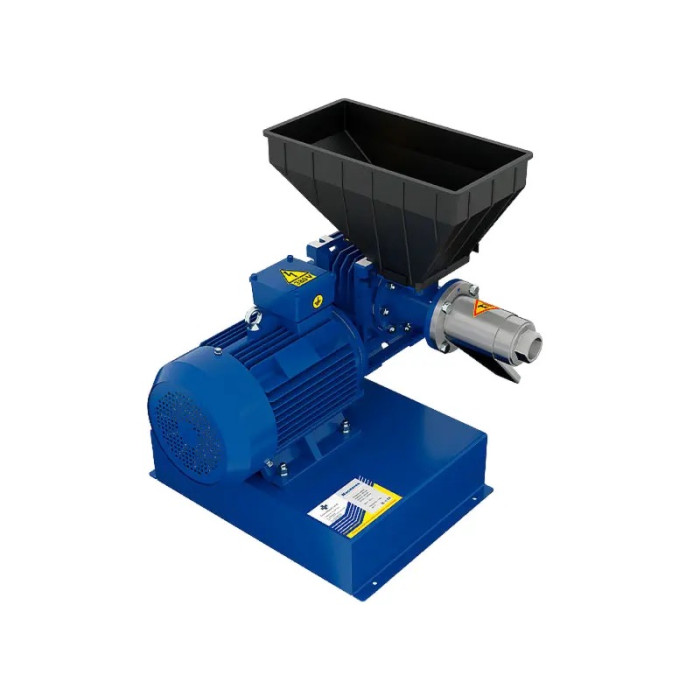

Description Oil Press PO-50 (230/400V)

The PO-50 domestic oil press is designed to extract vegetable oil from a wide range of oilseeds, including sunflower seeds, flaxseed, rapeseed, sesame seeds, pumpkin seeds and other oil-bearing crops. Thanks to its low energy consumption and compact design, it is suitable for home use and small-scale oil production.

The machine offers an output of up to 6 litres per hour. Its electric motor is controlled by a frequency inverter powered from a standard 220 V single-phase mains supply. The inverter converts the single-phase input into a three-phase output of 3 × 220 V, allowing the three-phase motor to operate from a standard domestic electrical connection and use its rated power effectively.

Oil Pressing Process

1. The raw material is placed in the hopper and passes through a feed valve into the screw mechanism.

2.

   The screw crushes the seeds and conveys them into the pressing chamber, which consists of a perforated cylinder, a pressure screw shaft, a press cone and an adjustment nut.

3. The solid by-product (oil cake) is discharged through the opening in the die nut, while the extracted oil flows through the perforations in the pressing chamber cylinder.

Main Features of the PO-50 Oil Press

• Efficient drive system: A special gearbox reduces the motor speed to the required rotational speed of the working shaft.

• Oil collection: Vegetable oil flows through a dedicated outlet in the working unit. A special metal tray is fitted beneath the screw section to collect the oil.

• Convenient feeding: A hopper makes it easy to load oilseeds into the machine.

• Adjustable feed rate: A metal regulator positioned between the hopper and working chamber controls the supply of seeds.

• Easy maintenance: The processed material is discharged through a die in the working unit. After operation, the die can be removed to facilitate maintenance of the screw section.

• Low energy consumption: Designed for economical oil extraction on a small scale.

Applications

The PO-50 is suitable for extracting oil from sunflower seeds, flaxseed, rapeseed, sesame seeds, pumpkin seeds and other compatible oilseeds. It is a practical solution for households, small farms and users who want to produce fresh vegetable oil from their own raw materials.

PO-50 — Compact Oil Extraction for Home and Small-Scale Use
