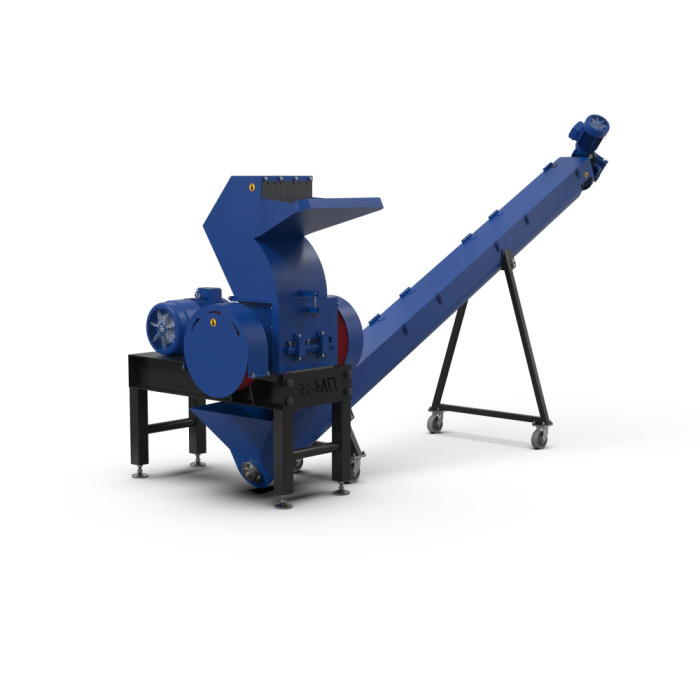

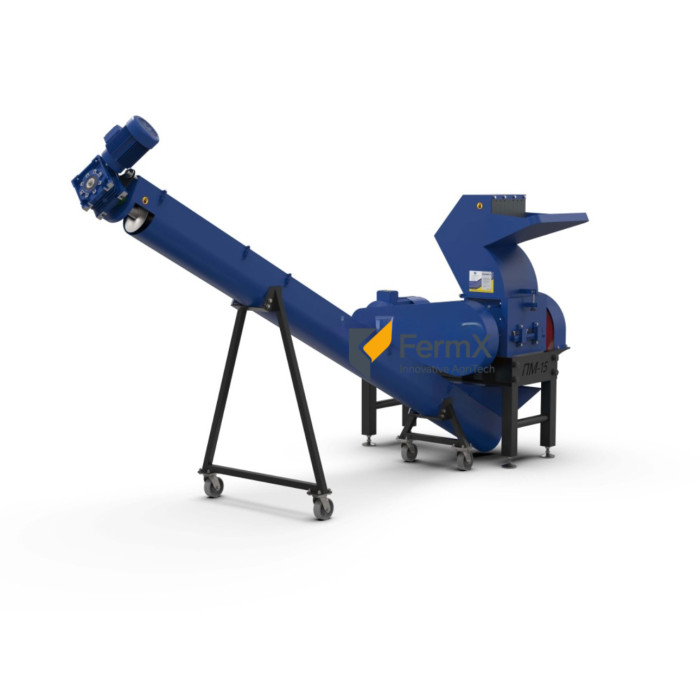

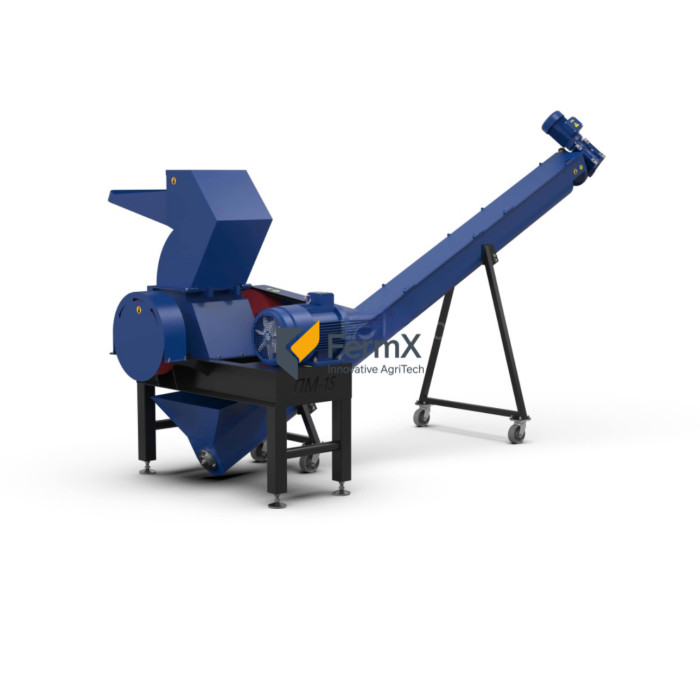

PM-18 Meat and Bone Crusher with Screw Conveyor

Description PM-18 Meat and Bone Crusher with Screw Conveyor

The PM-18 meat and bone crusher is a professional machine designed for efficient crushing of meat and bone waste, as well as by-products in the food and feed industries. Powered by a robust 18.5 kW motor (1500 rpm), the machine delivers high performance and reliability. Additionally, the device is equipped with an attached screw conveyor driven by a 2.2 kW motor (1500 rpm), enabling efficient unloading of the crushed material. The 400 × 300 mm feed opening sizeallows for processing large quantities of material in a short time.

Operating Process:

The operation process is intuitive and effective:

• Raw materials, such as bones or other animal by-products, are introduced into the loading hopper.

• The material is processed in the working chamber, where rotating crushing teeth efficiently grind it.

• The crushed product is then transported by the screw conveyor to the collection area, streamlining unloading and preparing the material for further processing.

Features and Benefits of the PM-18 Crusher:

✔ High Efficiency – A powerful 18.5 kW main motor and a 2.2 kW screw discharge motor ensure high performance in processing hard bones and large quantities of raw materials.
✔ Efficient Discharge System – The screw conveyor, designed for transporting crushed material, eliminates the need for manual unloading, accelerating production processes.
✔ Configuration Options – Available in versions with:

• A hopper

• A screw conveyor

• A stainless steel screw conveyor
  ✔ High-Quality End Product – Crushed material features high protein content, minerals (including phosphorus), and an ideal structure for meat and bone meal production.
  ✔ Durable Construction – Built with durable materials to ensure reliable performance under intensive use.
  ✔ Versatile Applications – Can operate as a standalone machine or as part of an integrated production line.
  ✔ Ease of Use – Intuitive operation and easy connection of the screw system allow customization to user needs.

Applications of the PM-18 Crusher:

• Meat and Bone Meal Production: The process includes cooking, drying, sterilization, and crushing, ensuring high-quality final products rich in protein (48–62%), phosphorus, and other nutrients.

• Animal and Poultry Feed: The crushed material is a valuable ingredient in feed for dogs, cats, pigs, cattle, and poultry.

• Organic Fertilizers: Bones and meat and bone meal are a rich source of phosphorus and nutrients for plants.

• Eco-Friendly Fuel: The meal can be used as an alternative fuel in industrial applications.

The PM-18 meat and bone crusher with screw conveyor is an advanced solution that enhances the efficiency of processing meat and bone raw materials. With its durable construction and modern features, it meets the expectations of even the most demanding users in the food and feed industries.
